These channel brackets offer a modular support solution for cable tray systems, enabling quick installation and reliable load distribution in building and industrial projects.

Item code “A” (mm) Weight/C (kg) Gage Uniform Design Load (lbs) Uniform Design Load (kN)
Single Channel Bracket
457,2
197,8
 2,77 600 2,7
1,90 450 2
1,52 300 1,3
609,6
243,1
 2,77 450 2
1,90 330 1,5
1,52 220 1



Item code “A” (mm) Weight/C (kg) Thickness Uniform Design Load (lbs) Uniform Design Load (kN)

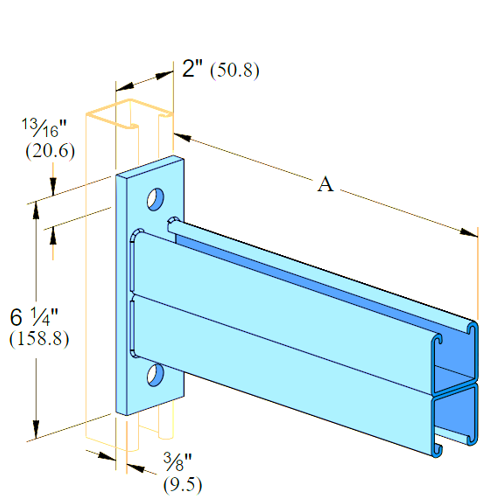

Double Channel Bracket
304,8
227,7
 2,77 2000 8,9
1,90 1400 6,2
1,52 1000 4,4
457,2
313,9
 2,77 1300 5,8
1,90 900 4
1,52 650 2,9
609,6
400,1
 2,77 1000 4,4
1,90 700 3,1
1,52 500 2,2
762
486,3
 2,77 800 3,6
1,90 560 2,5
1,52 425 1,9
914,4
572,4
 2,77 650 2,9
1,90 450 2
1,52 320 1,4
